Laser welding is a cutting-edge technology used in various industries to achieve strong, durable welds with minimal distortion and heat damage. The laser welding machine uses concentrated light in the form of a laser to melt materials and join them together, offering high precision and speed in the welding process. It is favored for applications where precision, speed, and reduced heat-affected zones are crucial.
This article delves into the mechanics of laser welding, its types, benefits, applications, and the industries that benefit from this innovative technology. It will also explore the different types of laser welding , their working principles, and advancements in this field.
What is Laser Welding Machine?

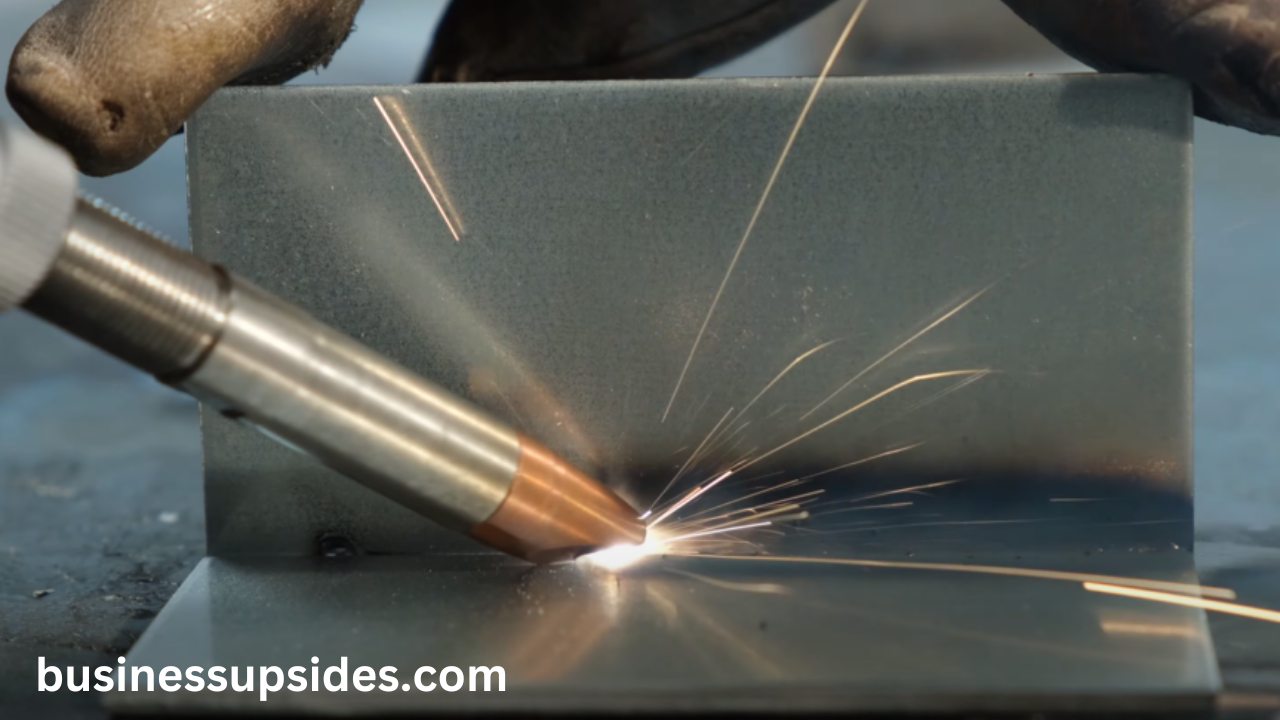

Laser welding is a type of welding process that uses a focused laser beam to melt and fuse materials together. The laser beam provides highly concentrated heat, which is ideal for welding thin materials or for precise, small welds. Unlike traditional welding methods that use an electric arc or flame, laser welding relies on the interaction of light energy with the materials to create the bond.
The Laser Welding Machine beam is directed to the material joint, which heats the area to the point of melting. Once the material melts, it forms a pool of molten metal that solidifies to create a strong joint between the two materials. Laser welding can be used on a wide range of materials, including metals, thermoplastics, and other specialized alloys, depending on the specific application.
How Does a Laser Welding Work?
A laser welding works by directing a concentrated laser beam at the workpieces to create a welded joint. The process involves several key components and steps:
- Laser Generation: The laser beam is generated in the laser resonator, which houses a medium that produces the laser. Depending on the type of laser used, this could be a CO2 laser, fiber laser, or diode laser.
- Laser Transmission: The generated laser beam is directed to the welding area using optical fibers or mirrors. In some cases, a robotic arm or a fixed system might be used to direct the beam precisely.
- Beam Focusing: The laser beam is focused using a lens to create a concentrated spot of light on the material surface. The size of this focal point depends on the material thickness and the welding requirements.
- Material Melting: The focused laser energy rapidly heats and melts the material at the joint, forming a molten pool.
- Solidification: As the laser moves along the joint, the molten pool solidifies, fusing the two materials together.
- Control System: Many laser welding machines are equipped with computer controls that manage the laser’s intensity, beam movement, and the welding process. This ensures precision and repeatability.
Types of Welding Machines
There are different types of welding machines, each offering distinct advantages based on the materials being welded, the required welding depth, and other factors. The two primary modes of laser welding are conduction mode and keyhole mode welding.
1. Conduction Mode Welding
In conduction mode, the laser beam is absorbed by the surface of the material, causing it to melt. This results in a shallow weld pool that cools and solidifies quickly. This mode is typically used for welding thin materials or for producing precise, cosmetic welds. The heat-affected zone (HAZ) is relatively small, minimizing distortion and warping.
2. Keyhole Mode Welding
Keyhole mode welding is used when deep penetration is needed. In this mode, the laser beam creates a small hole or “keyhole” in the material, which allows the molten metal to be expelled as the beam moves along the joint. This results in a deeper weld that is stronger and more durable. Keyhole mode is often used for welding thicker materials and for creating high-strength joints.
Advantages of Laser Welding
Laser welding machines offer numerous advantages over traditional welding methods. These benefits make laser welding highly attractive for applications in industries that require high precision, speed, and minimal post-welding work.
1. Precision and Accuracy
Laser welding is known for its high level of precision. The laser beam can be focused on a very small area, which is ideal for intricate welding tasks. This precision reduces the need for post-weld machining and minimizes the chances of defects.
2. Minimal Heat-Affected Zone (HAZ)
The laser’s focused energy results in a minimal heat-affected zone around the weld. This is crucial when working with sensitive materials or when the surrounding areas of the material must remain undamaged. This feature also reduces the risk of warping and distortion of the workpiece.
3. Speed
Laser welding is a fast process, especially for thin materials or when a high volume of welds needs to be completed. The machine can be programmed for automated processes, improving throughput and reducing overall production time.
Previous article; Expert Office Cleaning Services In Kitchener For A Spotless Workspace
4. No Need for Filler Materials Laser Welding Machine
Unlike traditional welding techniques, laser welding does not always require filler materials to join the workpieces. This not only simplifies the welding process but also eliminates the need for additional materials, reducing overall costs.
5. Clean and Low Pollution
Laser welding is a cleaner process compared to traditional welding techniques. Since it doesn’t involve the use of flux or other materials, it reduces the risk of contamination and residue on the workpieces. This makes laser welding ideal for applications that require high-quality, clean surfaces.
6. Automation and Flexibility
Laser welding can be easily integrated into automated production lines. Robots or automated systems can be used to manipulate the workpieces, while the laser welding executes the welding process. This is especially beneficial for high-volume applications where precision and consistency are required.
7. Capability for Difficult Materials
Laser welding can be used to join difficult materials, such as dissimilar metals, materials with high melting points, and complex alloys. The focused heat source ensures that even materials with low thermal conductivity can be welded effectively.
Applications of Welding Machines
Laser welding is used across a wide range of industries, thanks to its ability to weld a variety of materials with minimal distortion and high precision. Below are some of the primary sectors where laser welding is commonly used:
1. Automotive Industry
In the automotive sector, laser welding is used for joining various parts of vehicles, including body panels, exhaust systems, and engine components. The speed and precision of laser welding are highly beneficial for high-volume production, and the ability to weld thin materials without distortion makes it ideal for automotive sheet metal work.
2. Aerospace Industry
Aerospace components require precision and strength, and Laser Welding Machine is perfect for these demanding applications. It is used to join components made from lightweight metals, alloys, and composites that need to withstand extreme conditions. The clean, precise nature of laser welding helps ensure the structural integrity of aerospace parts.
3. Electronics Manufacturing
Laser welding is used in the electronics industry to create small, delicate welds on components like connectors, batteries, and microelectronic devices. Its precision ensures that the parts are welded with minimal heat damage and that the overall quality of the electronic product is not compromised.
4. Medical Devices
In the medical device industry, precision and cleanliness are paramount. Laser welding is used to join tiny components, such as in the creation of surgical instruments, implants, and medical devices. The clean welds and minimal heat-affected zones are particularly beneficial when working with medical-grade materials.
5. Jewelry Manufacturing
Laser welding is also employed in jewelry manufacturing to repair or assemble pieces. Its precision allows for the fine welding of gold, platinum, and other precious metals, creating strong joints without excessive heat or distortion.
6. Manufacturing of Solar Panels Laser Welding Machine
In the solar industry, laser welding is used to join the thin metallic contacts on solar cells, ensuring a strong, long-lasting connection between the individual cells. The precision of laser welding is critical for the electrical performance of the panels.
7. Tooling and Molding
Welding machines are also used to repair molds and tooling in industries like injection molding. The precision of the laser allows for the repair of fine details without affecting the integrity of the mold.
Types of Laser Sources Used in Welding
There are various types of lasers used in welding machines, each offering unique characteristics for different applications.
- CO2 Lasers: CO2 lasers have been a staple in industrial laser welding for decades. These lasers use a gas mixture of carbon dioxide, nitrogen, and hydrogen to produce a high-power laser beam. CO2 lasers are versatile and ideal for welding both metals and plastics.
- Fiber Lasers: Fiber lasers use a doped fiber optic cable to generate the laser beam. These lasers offer high beam quality, better efficiency, and a more compact design compared to CO2 lasers. Fiber lasers are especially useful for applications requiring high precision and deep penetration.
- Diode Lasers: Diode lasers use semiconductor diodes as their source. They are compact and efficient, making them suitable for applications where space and energy efficiency are critical.
- YAG Lasers: YAG (Yttrium Aluminum Garnet) lasers are another common type of laser used in welding. These solid-state lasers produce a high-quality beam and are used for precise welding tasks in industries like aerospace and medical device manufacturing.
Conclusion
Laser welding machines represent one of the most advanced methods of welding, offering a range of benefits that make them ideal for precise, high-quality welds. From aerospace to electronics and automotive manufacturing, laser welding has proven its versatility and reliability in various industries. The advantages of precision, speed, minimal heat-affected zones, and the ability to weld difficult materials make laser welding an essential technology for modern manufacturing.
As technology advances, we can expect laser welding to become even more efficient and widespread, with improvements in laser sources, automation, and integration into new manufacturing systems. The continued development of welding machines will likely lead to more innovative applications, making them indispensable in a wide range of industrial sectors.
